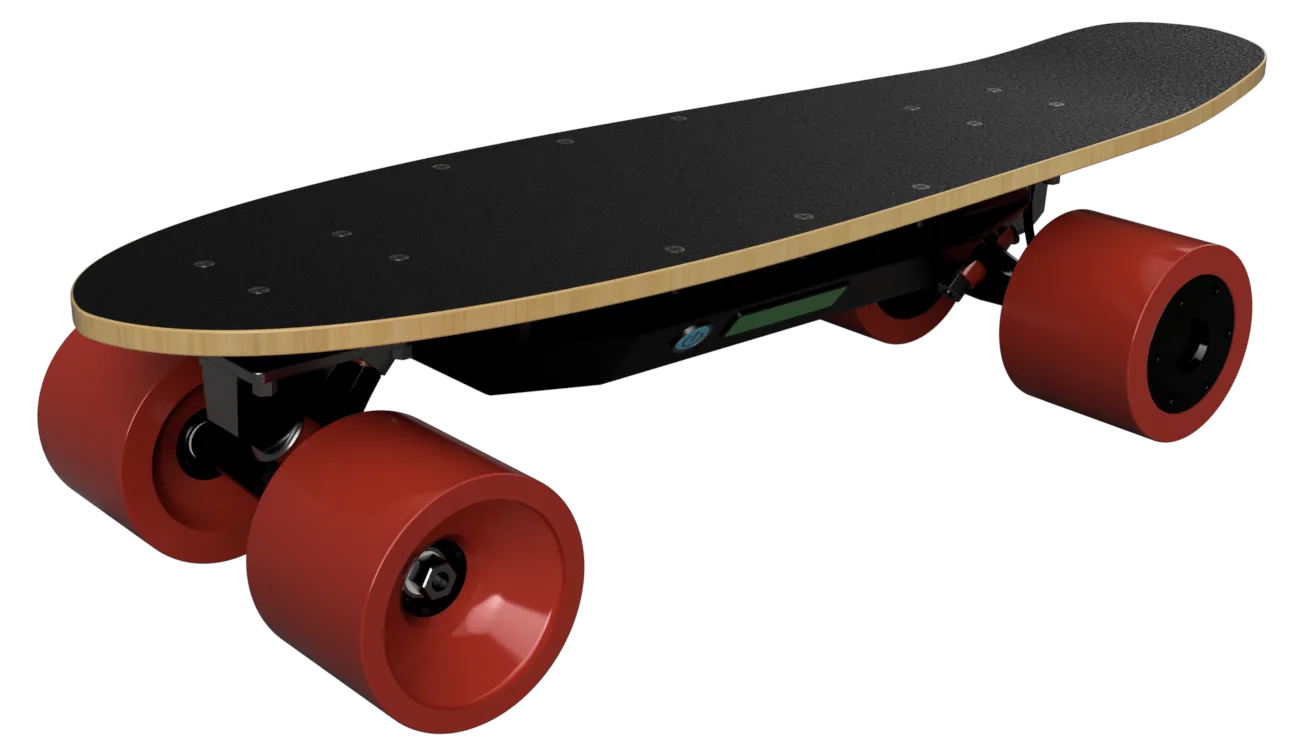

It was my own take on an electric skateboard, worked through as one system: a deck made from renewable bamboo and abaca fiber, hub motors that keep the wiring out of sight, an integrated battery, and a remote you can use with either hand.
The board reaches 15 to 20 mph and covers an estimated 8 to 10 miles on a single charge.
- deck length
- 27 in
- top speed
- 15–20 mph
- range per charge
- 8–10 mi
- hub motors
- 2

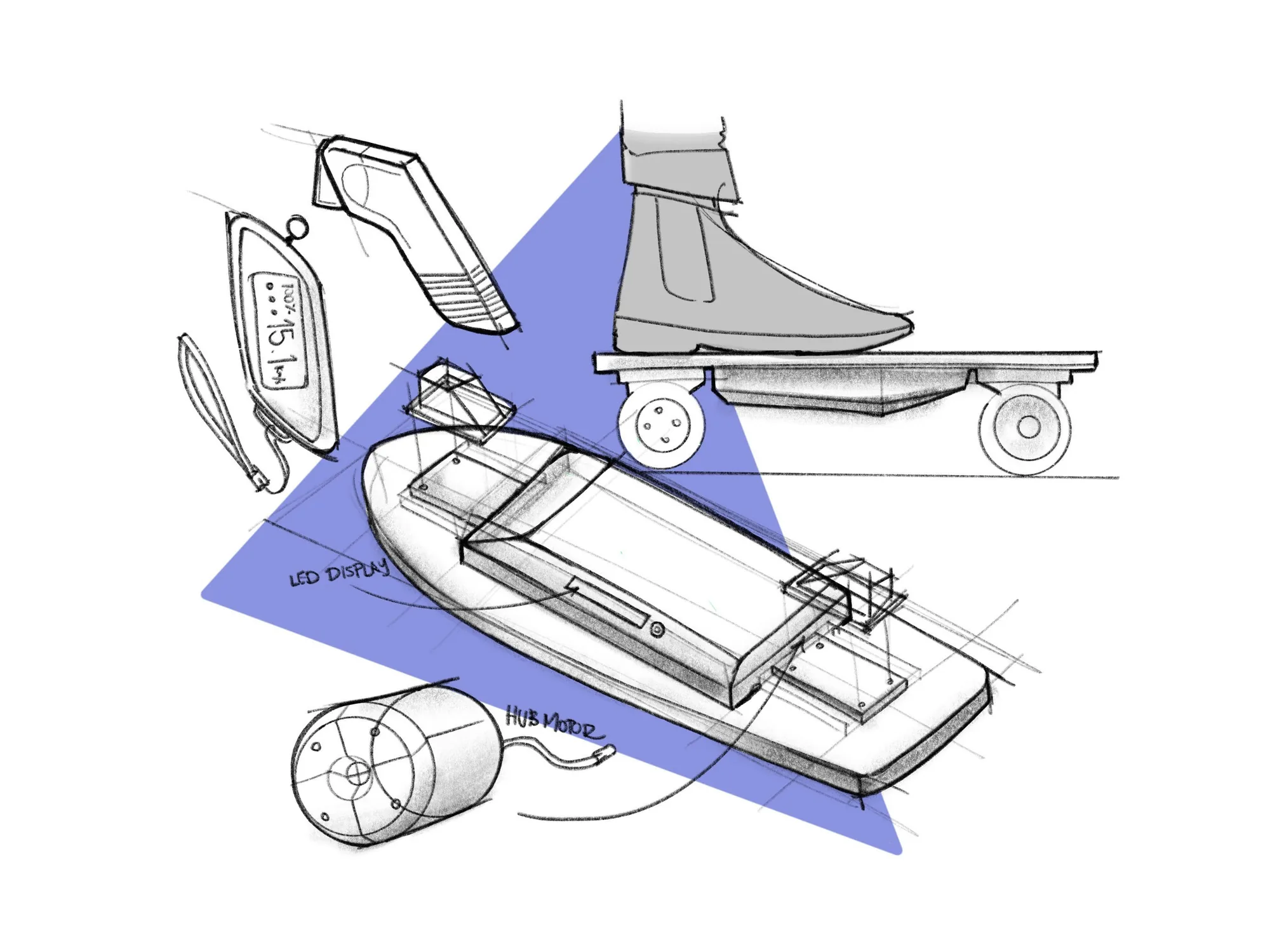

Sketches
Sketches worked through the whole system at once: the deck, the enclosure underneath for the battery and electronics, the hub motor, an LED display and the handheld remote.

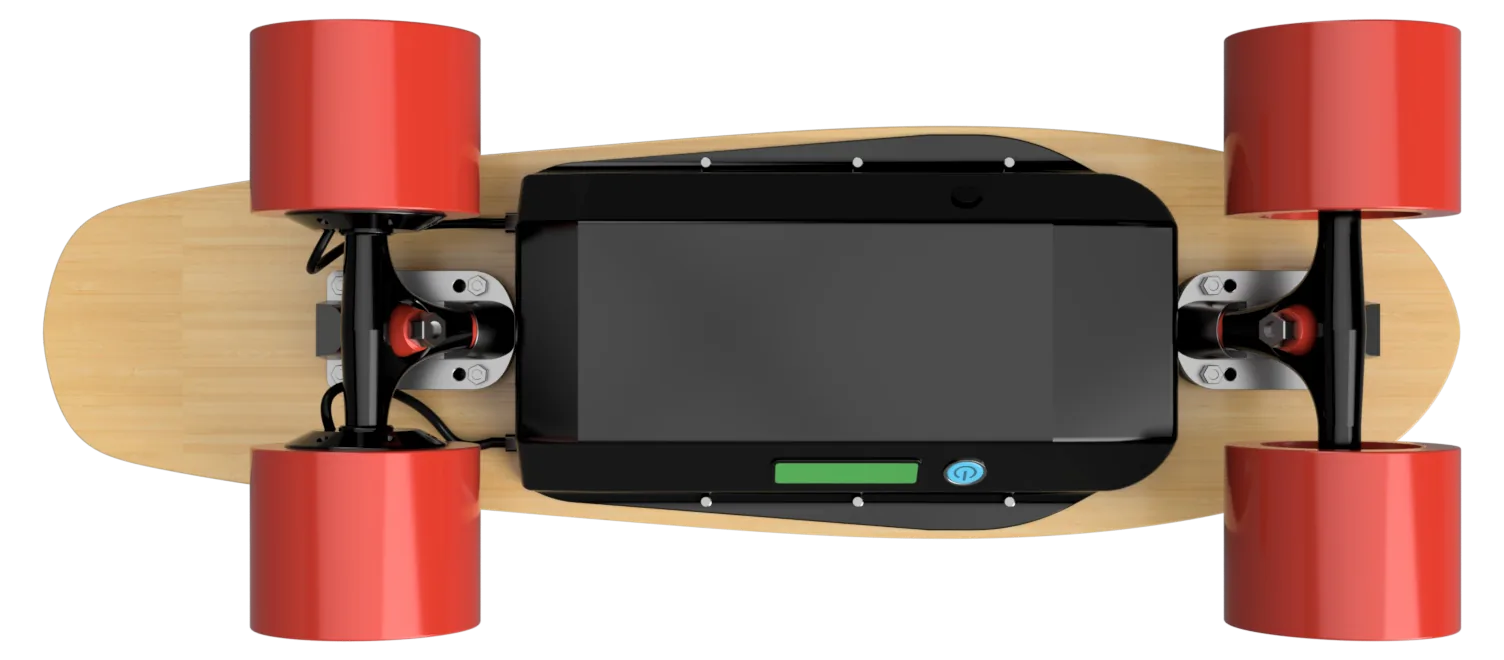

Materials and drive
The deck is made from renewable bamboo and abaca fiber, a durable base with some flex. Dual hub motors drive the wheels directly, which keeps the system clean with no exposed wiring, and an integrated lithium-ion battery gives it 15–20 mph and 8–10 miles per charge.
- Bamboo deckBamboo and abaca fiber: sustainable, light and durable, with some flex.
- Grip tapeFull-length grip on the top surface.
- Carbon fiber enclosureA light, tough cover that protects the battery and electronics.
- Hub motorsTwo motors built into the wheels, for a cleaner ride with no exposed wiring.
- Polyurethane wheelsFor better mobility on the road.

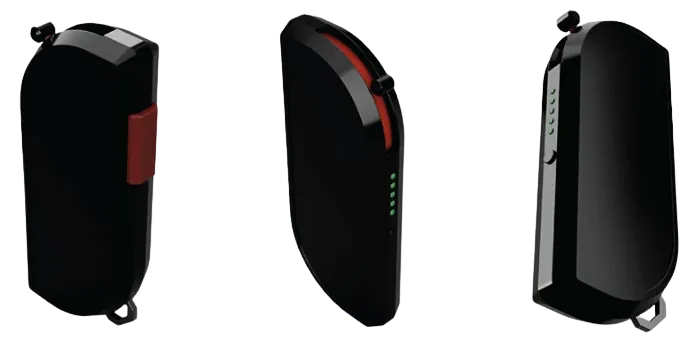

The remote
The remote is ambidextrous and keeps the layout simple and easy to use. An integrated safety strap keeps it secure in your hand while you ride through busy streets.
